Box Tab in the Suite

The Box tab on the iTradeAIMS Dashboard shows structure facts from AIMS Box Advanced (Setup Indicator). In the full suite, read the Box tab before Setup 1 Confluence — confluence interprets box lifecycle together with wave, filters, and optional Banana/Bubble reads.

The Box tab does not show quality tiers. HIGH / CAUTION / AVOID appear only in confluence sections.

Box tab vs Setup 1 Confluence​

LayerProductQuestion it answers
Box tabAIMS Box AdvancedIs there a valid grey-box setup? What state is it in? Did filters pass?
Setup 1 ConfluenceConfluence IndicatorGiven wave + box + filters, how aligned is the combined setup — and what quality tier applies?
Read order

Always confirm Box tab facts first. If Box shows Blocked, confluence should not override that with TRIGGERED or HIGH.

Setup lifecycle on the tab​

Box tab stateMeaningTypical Setup 1 Confluence
Setup 1 formingCandidate setup building; fractals may not be confirmedWAIT or ARMED until structure completes
Setup 1 · READYSetup 1 passed box rules; trade reference lines may appearARMED + quality tier; TRIGGERED after breakout rules fire
Setup 2Second setup type ready for reviewBox fact; Setup 1 Confluence focuses on Setup 1 — treat Setup 2 as separate box context
Closed breakPrice closed beyond the relevant box levelToward TRIGGERED if wave + filters agree
BlockedFilter fail, tall box, or context blockWAIT or AVOID — trust the block
Box tab showing Setup 1 READY with trade reference lines on unified dashboard
Setup 1 · READY — reference lines are for review, not automatic orders.

Setup 1 forming (WAIT / ARMED)​

While Setup 1 is still forming, the Box tab may show candidate structure before fractals confirm. Pair with Setup 1 Confluence — status may stay WAIT or ARMED until the breakout layer completes.

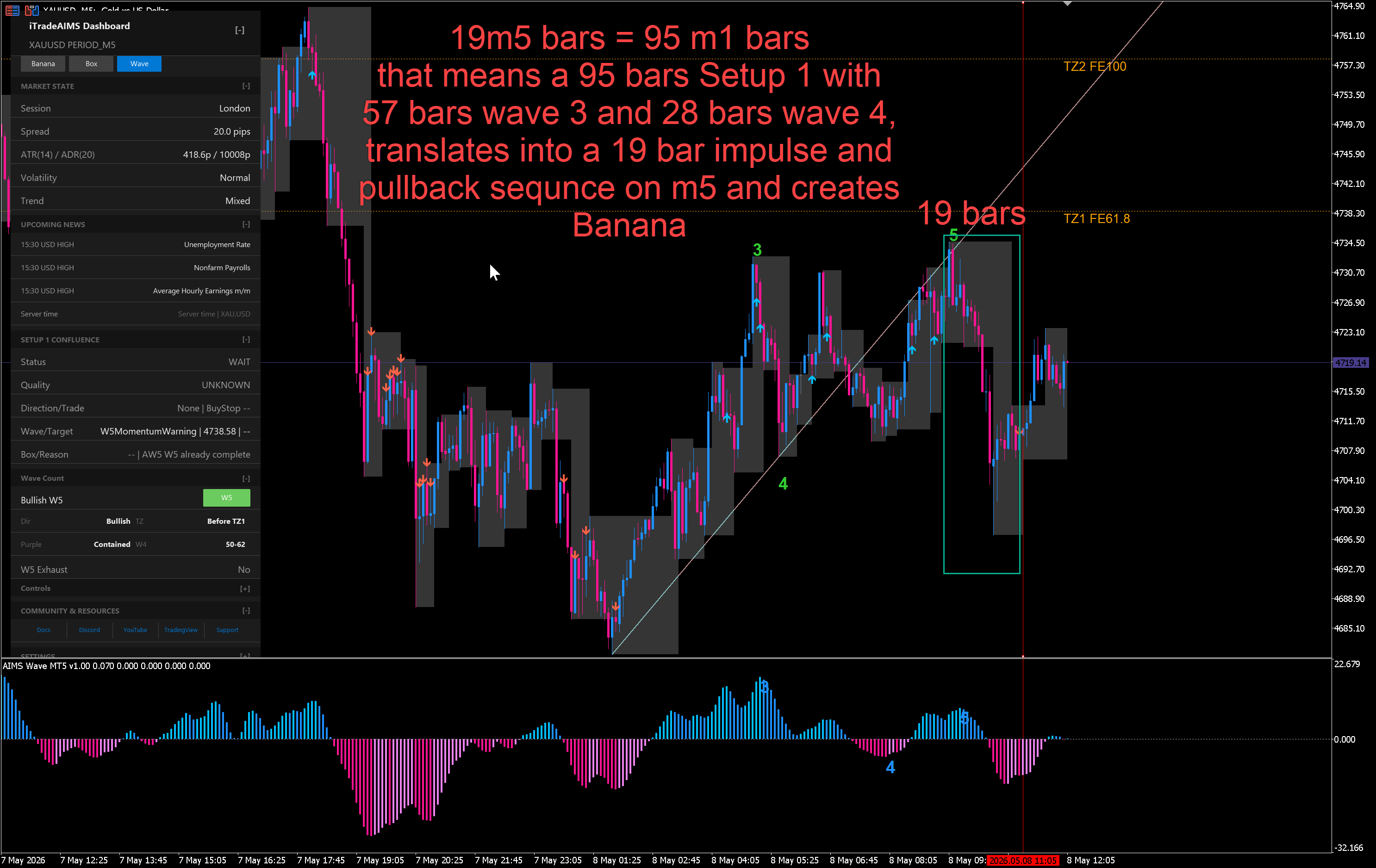

iTradeAIMS Dashboard showing Setup 1 forming with fractal geometry context on MT5
Setup 1 forming — wait for structure to complete before reading TRIGGERED or HIGH.

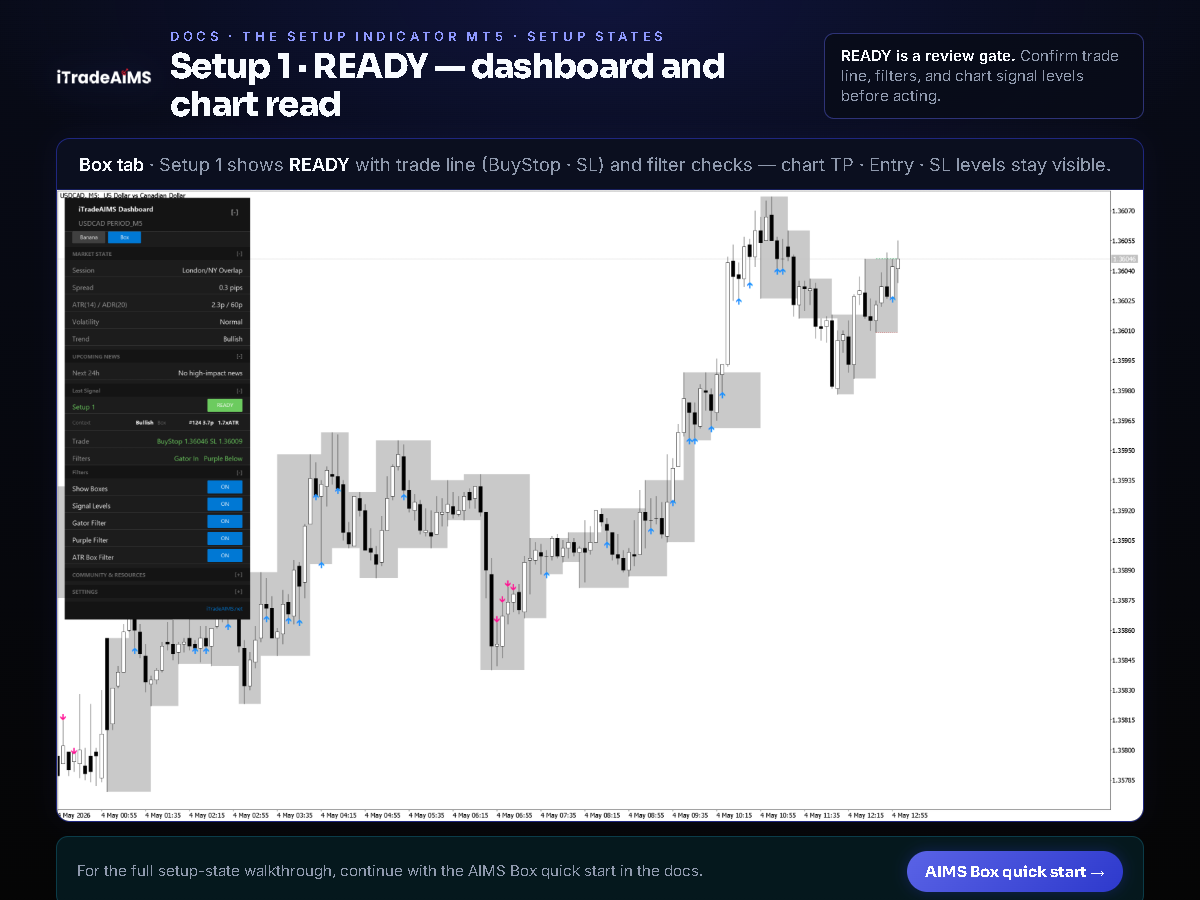

Unified dashboard Box tab with Setup 1 READY and filter row visible
Another **Setup 1 · READY** example — confirm filters (Gator, Purple, ATR) on the same tab.
Box tab showing Closed break with BuyStop and stop reference
Closed break — confluence may move toward TRIGGERED when wave and filters align.

Trade reference lines​

When Setup 1 is READY, the Box tab may show BuyStop / SL / TP style reference lines on the chart.

  • These are review references, not broker orders.
  • Confluence does not place trades.
  • Verify stop distance and position size against your plan before any action.

Filters on the Box tab​

Three filters commonly appear on or near the Box tab:

FilterRole
GatorCompression / Alligator-style trend context — confirms or blocks momentum alignment
PurpleHigher-timeframe bias — direction filter
ATR BoxBox height vs recent volatility — tall boxes can BLOCK

Filters on the tab show component facts. In confluence, they feed the evidence hierarchy — they confirm or downgrade quality, they do not replace missing wave structure.

AIMS Box MT4 dashboard Gator button — compression filter context on chart
**Gator** (Box filter) — MT4 compact panel example. On MT5 suite, read Gator on the **Box** tab filter row.
AIMS Box MT4 dashboard Purple button — higher-timeframe bias filter
**Purple** (Box filter) — direction bias check alongside Gator and ATR.
BLOCKED dashboard when AIMS Box exceeds ATR height filter despite chart momentum
BLOCKED — trust the filter even if on-chart arrows look bullish. Setup 1 Confluence should not override.

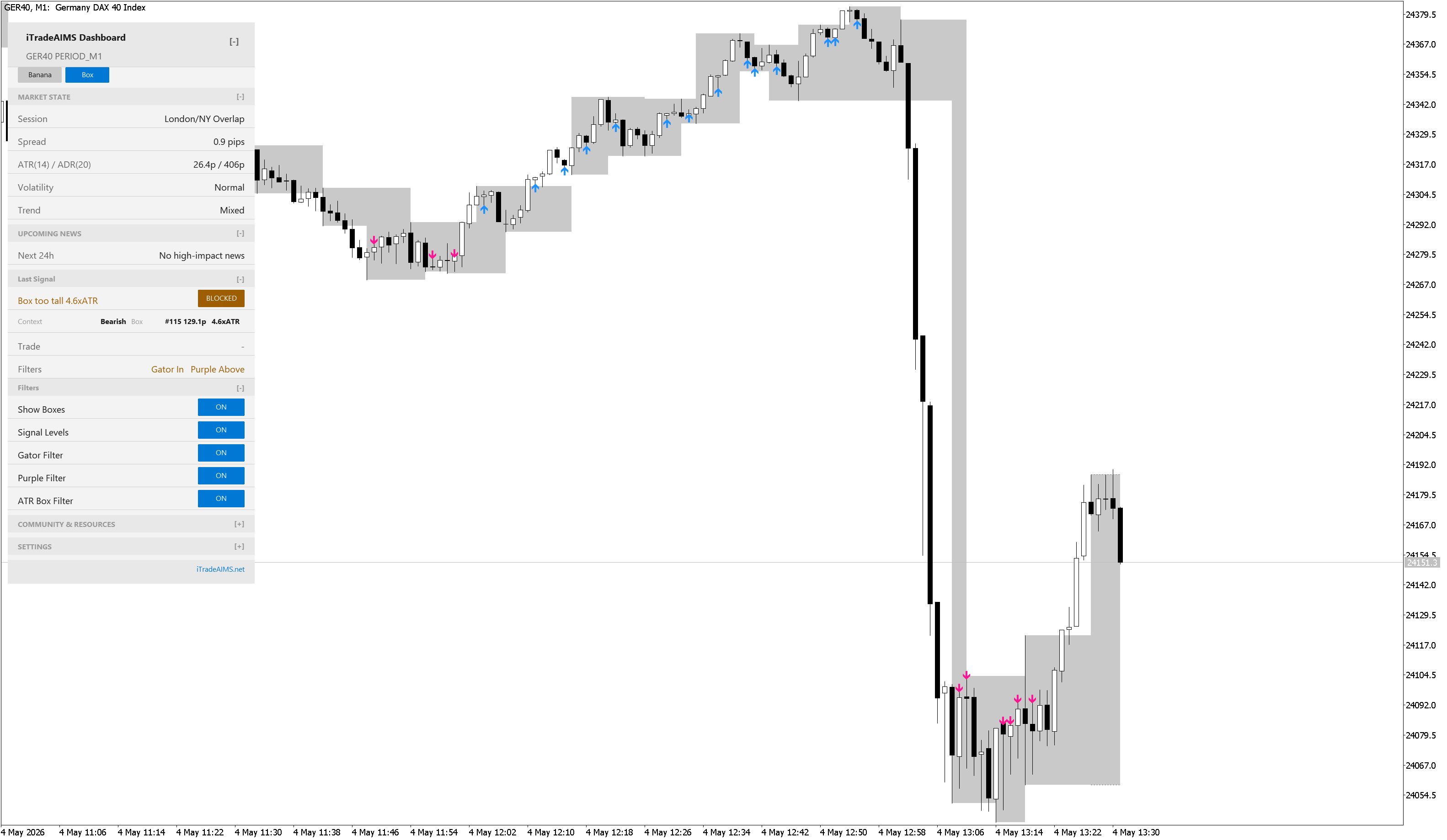

iTradeAIMS Dashboard Box tab showing BLOCKED when the grey box exceeds ATR height
Unified dashboard — **BLOCKED** on the Box tab when the setup box is too tall for the ATR filter.

Full filter documentation: AIMS Box settings explained.

Mapping Box tab → Setup 1 Confluence fields​

Box tab signalSetup 1 Confluence fieldExample values
Setup 1 · READYBox / reasonReady
Blocked (tall box)Box / reasonBlocked — box height
Blocked (Gator/Purple)Box / reasonFilter fail
Closed breakStatusToward TRIGGERED
READY + wave extensionQualityCAUTION — limited target room
READY + strong alignmentQualityHIGH (still review risk)

Expanded mapping: Confluence status model.

Contradictions that are not bugs​

Box tabSetup 1 ConfluenceInterpretation
READYCAUTIONValid structure + downgrade reason (wave extension, marginal reward)
READYWAITWave missing, incomplete structure, or waiting on another layer
BlockedARMED or TRIGGEREDTrust Blocked — refresh chart; report if persistent after bar close
Closed breakWAITWave or filters not aligned yet

Setup 2 in the suite​

Setup 2 appears on the Box tab as a distinct setup type. Setup 1 Confluence is named for Setup 1 methodology — use the Box tab for Setup 2 facts and your trading plan for how Setup 2 fits the method.

Standalone reference: Using AIMS Box levels.

MT4 contrast​

MT4 AIMS Box Advanced uses a compact mini-dashboard on chart — no Box/Banana/Wave tabs and no Setup 1 Confluence section. Suite box-tab guidance applies to MT5 only.

AIMS Box platform comparison.

Review checklist (Box-first)​

  1. Status pills — Box / Setup license live?
  2. Box tab — Setup 1 state, Blocked?, filter row.
  3. Wave tab — does wave support box direction?
  4. Setup 1 Confluence — status, quality, Box/reason, Wave/target.
  5. Banana tab + Banana Confluence if pullback timing matters.
  6. Risk, spread, news, position size.
